Shure IMXRK80 Shure IntelliMix Room Kits for Reconfigurable Rooms
The Shure IMXRK80 IntelliMix Room Kit is an all-in-one AV solution engineered for large Microsoft Teams Rooms (multi-camera). This kit combines Shure’s premium audio processing with intelligent video and zero-touch provisioning, ensuring rapid, consistent deployments and crystal-clear communication. At its heart are two MXA902 Ceiling Array Microphone & Loudspeaker units—ceiling-mounted devices providing automatic mixing, acoustic echo cancellation, noise reduction, AI Denoiser and AI Deverb—powered by Shure IntelliMix® Room DSP. The kit also includes a Huddly Crew system (3 × Huddly L1 cameras plus USB adapter and Director software), an IntelliMix Foundation compute unit, and an 11″ IntelliMix touch panel. Enterprise-grade security and real-time management via Microsoft Teams Admin Centre and ShureCloud, plus all necessary PoE+ switching and cabling, make installation seamless and scalable.
Highlighted Features

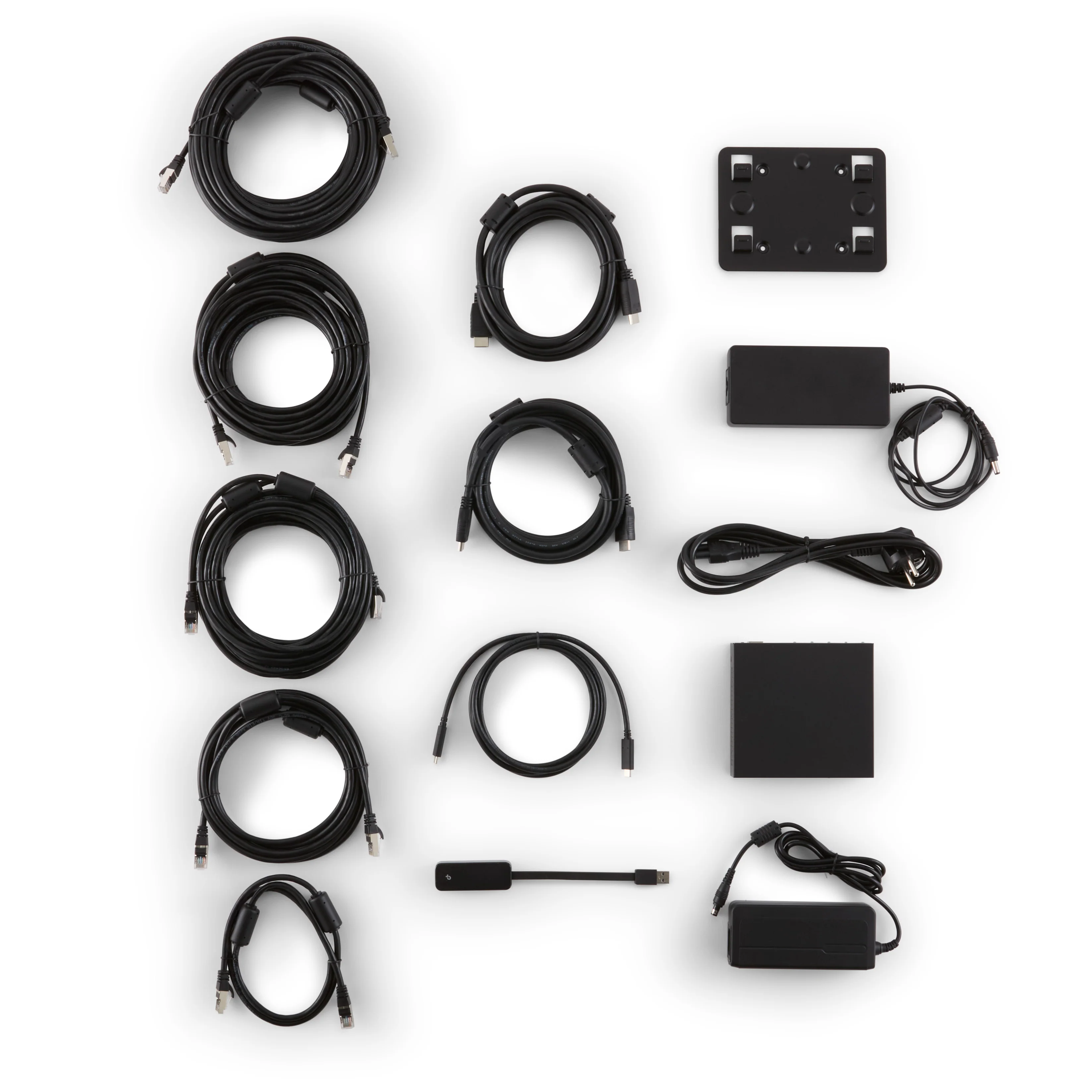

- Complete AV Kit: IntelliMix Foundation compute, touch panel, 2 × MXA902, Huddly Crew, PoE+ switch and cables.
- MXA902 Ceiling Array: Per-unit coverage of 20 × 20 ft (6.1 × 6.1 m); deploy two for large-room, full-zone coverage.
- IntelliMix DSP: Automatic mixing, AEC, noise reduction, AI Denoiser and AI Deverb.
- Zero-Touch Provisioning: Auto-configuration on boot; no manual adjustments required.
- Huddly Crew System: Three Huddly L1 cameras with Director software and USB adapter for multi-angle immersive video.
- Secure & Cloud-Managed: Microsoft Security Framework compliance; remote monitoring via Teams Admin Centre and ShureCloud.
Room Kit Includes
- (2) MXA902 Ceiling Array Microphone & Loudspeaker
- (1) Huddly Crew system (3 × Huddly L1 cameras & USB adapter)

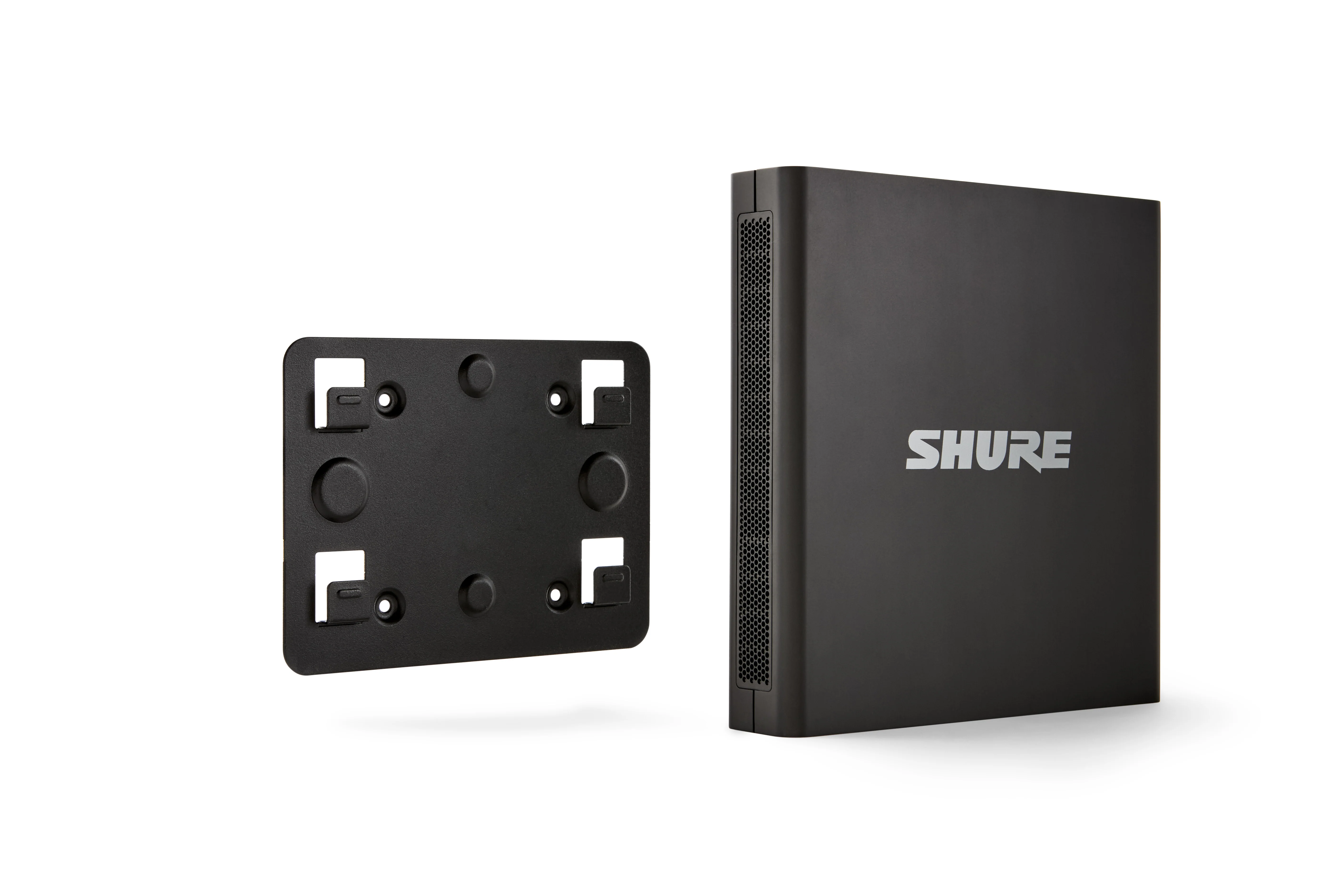

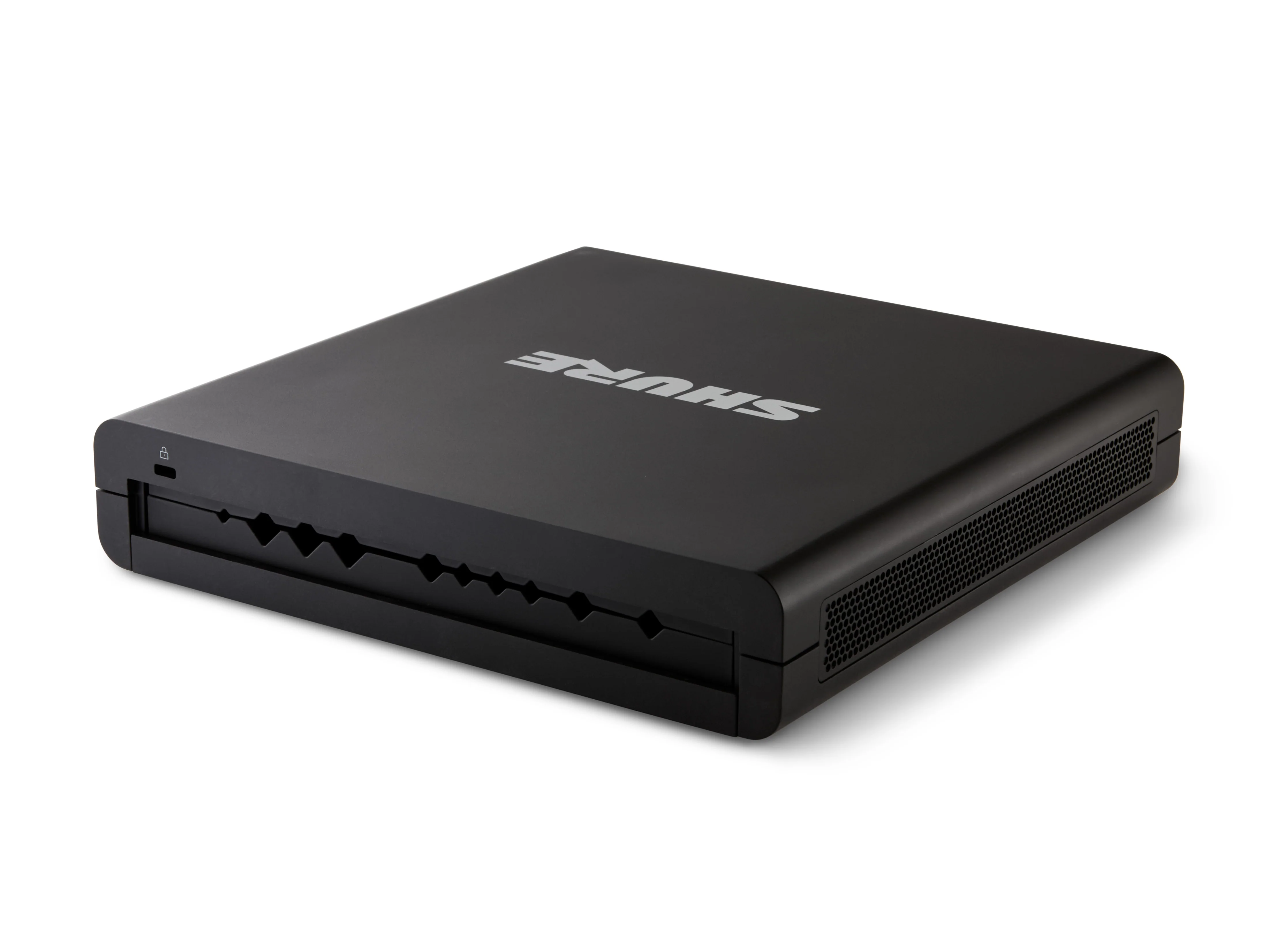

- (1) IntelliMix Foundation compute unit

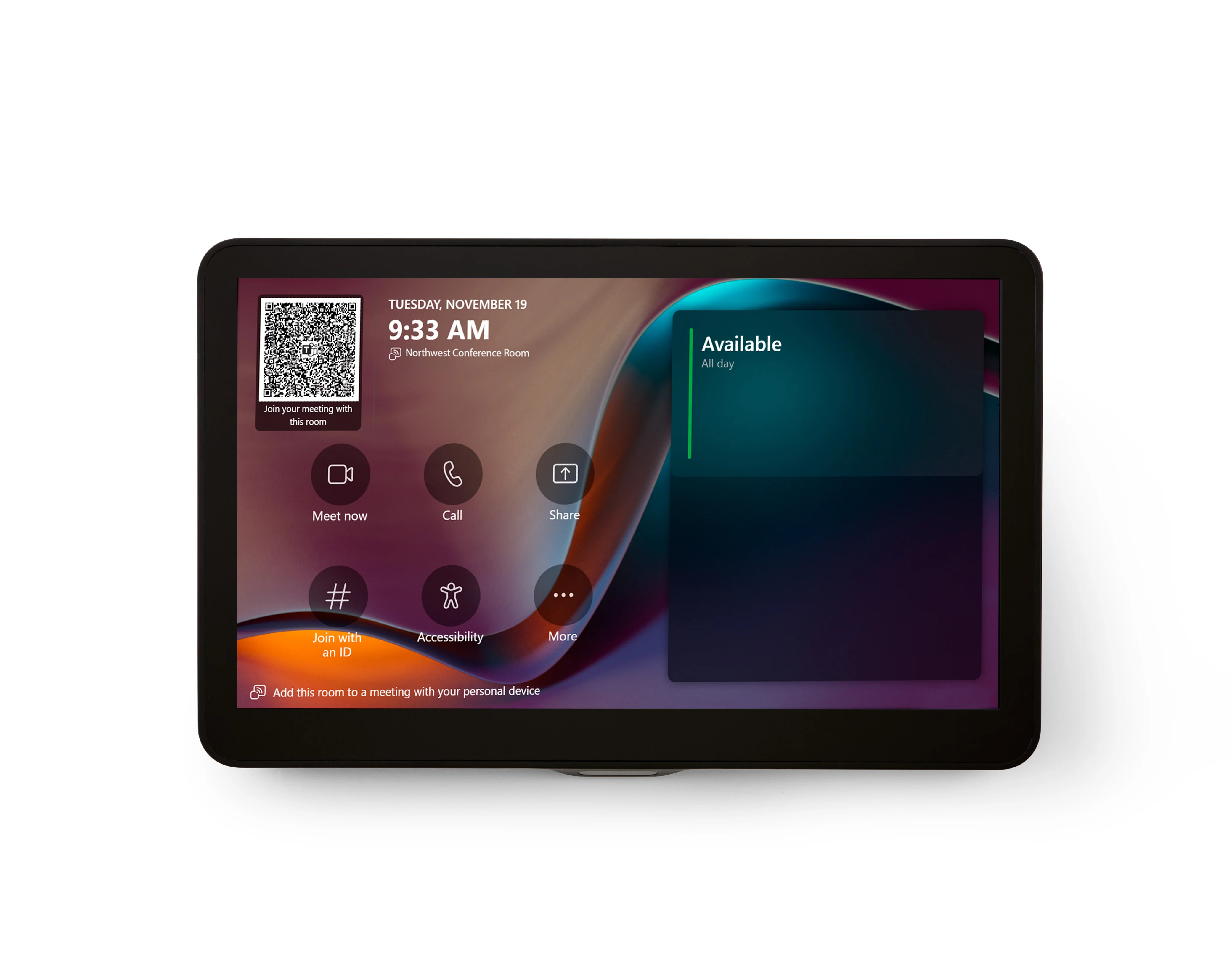

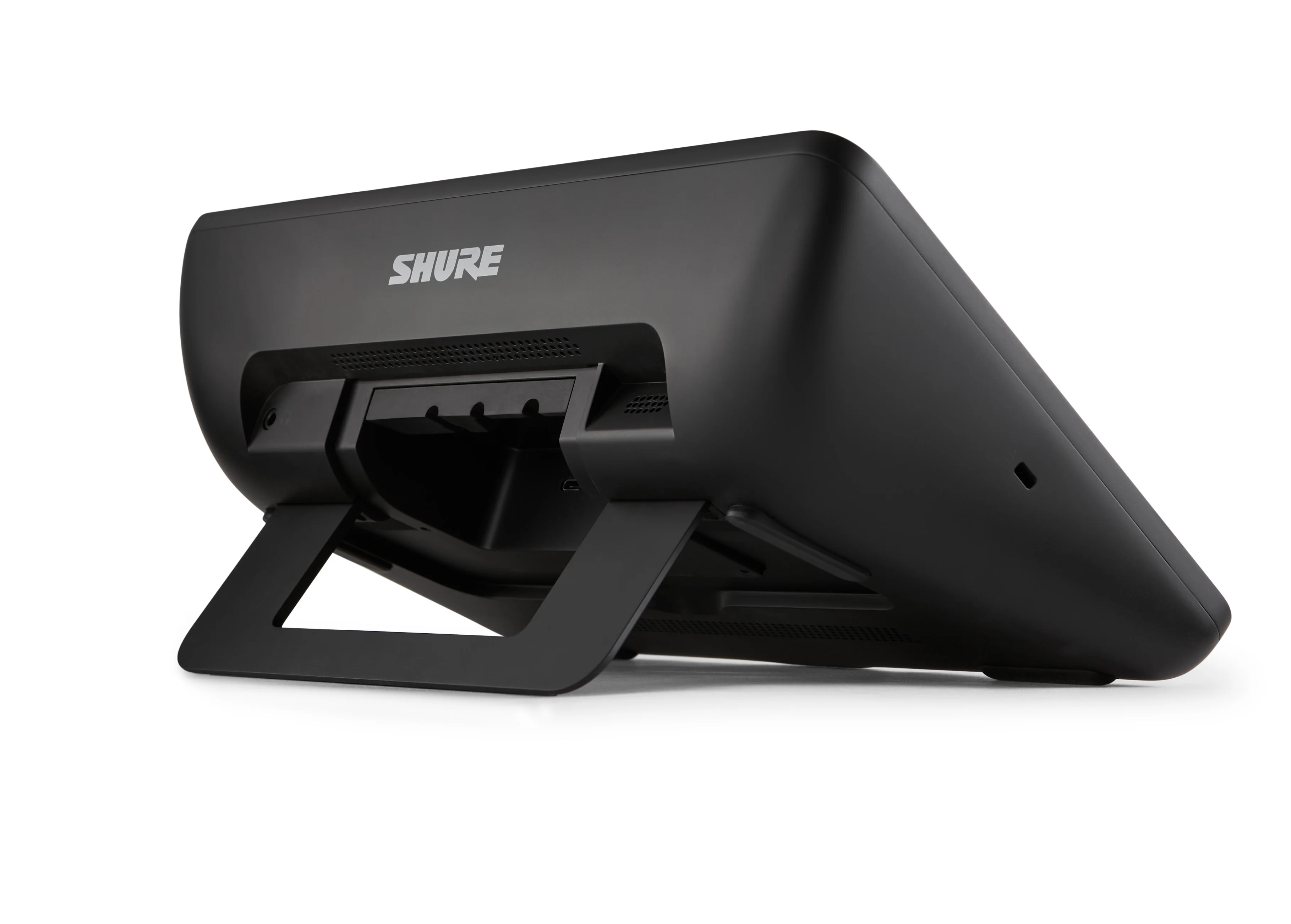

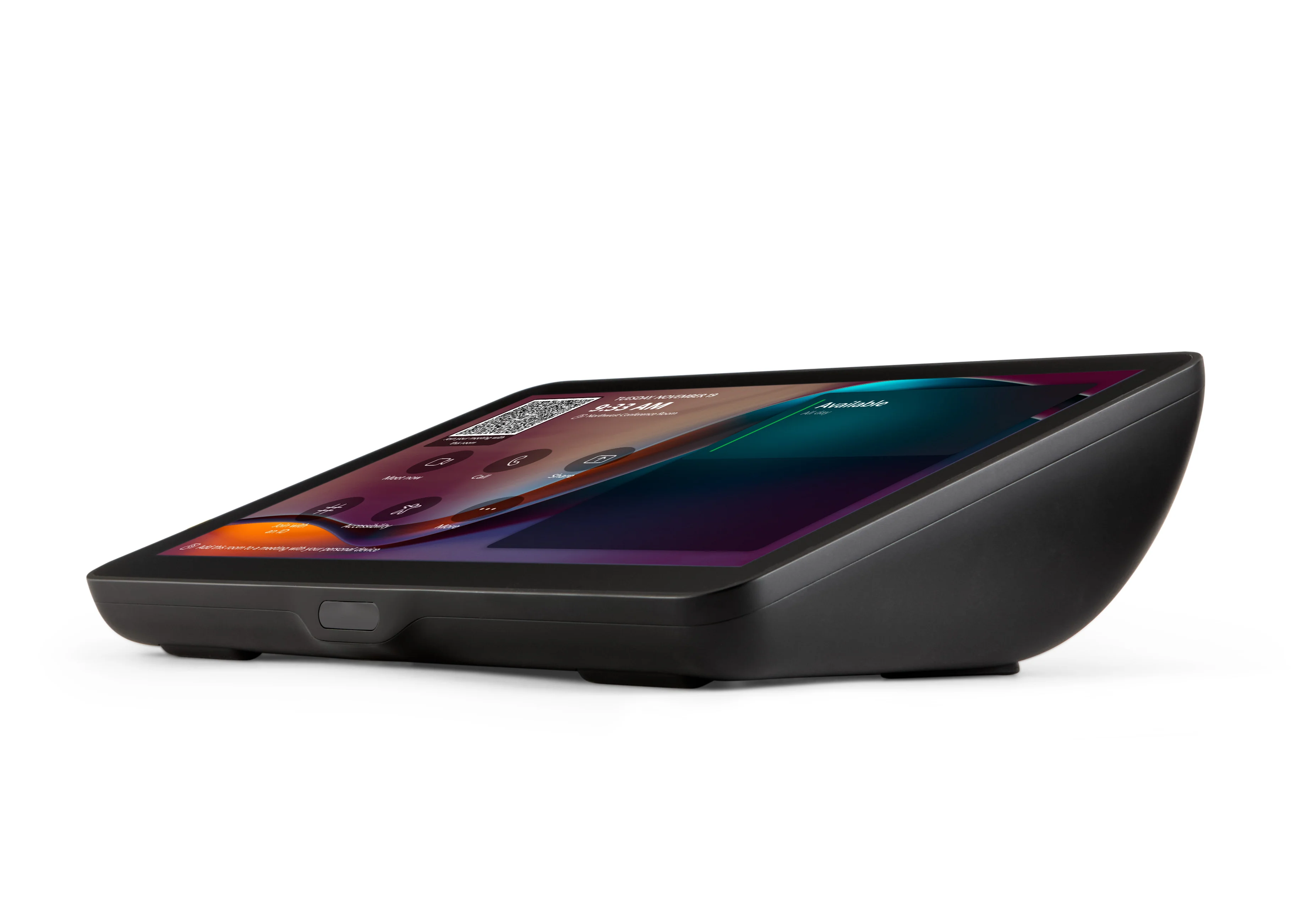

- (1) 11″ IntelliMix touch panel

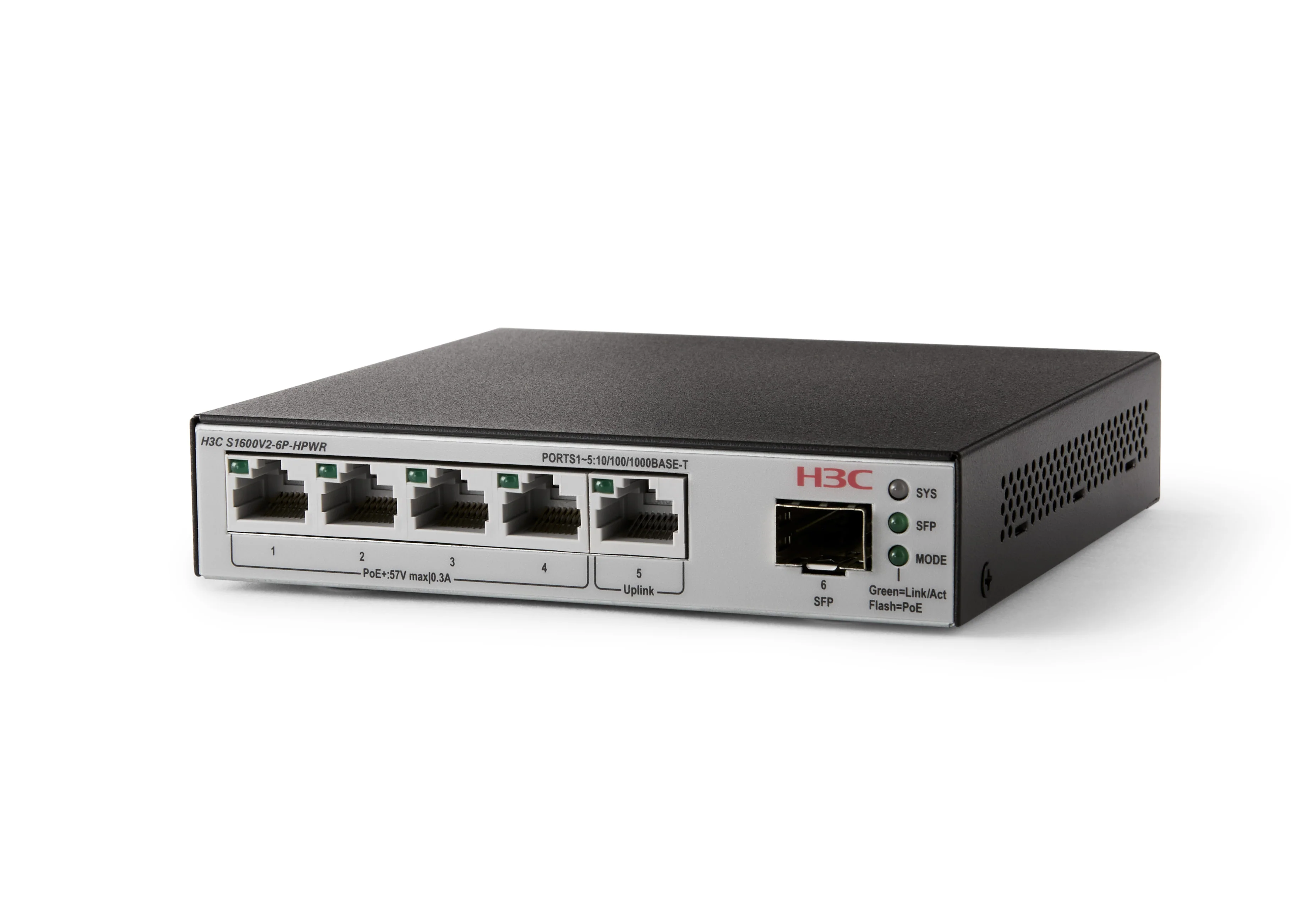

- (1) 4-port PoE+ network switch
- (1) VESA mounting bracket set
Specifications
| IntelliMix Foundation Compute | |
|---|---|
| Processor & Memory | 12th-gen Intel Core i5; 16 GB DDR4; 256 GB storage |
| OS & Software | Windows 11 IoT Enterprise; Microsoft Teams Rooms & IntelliMix Room (8-channel) |

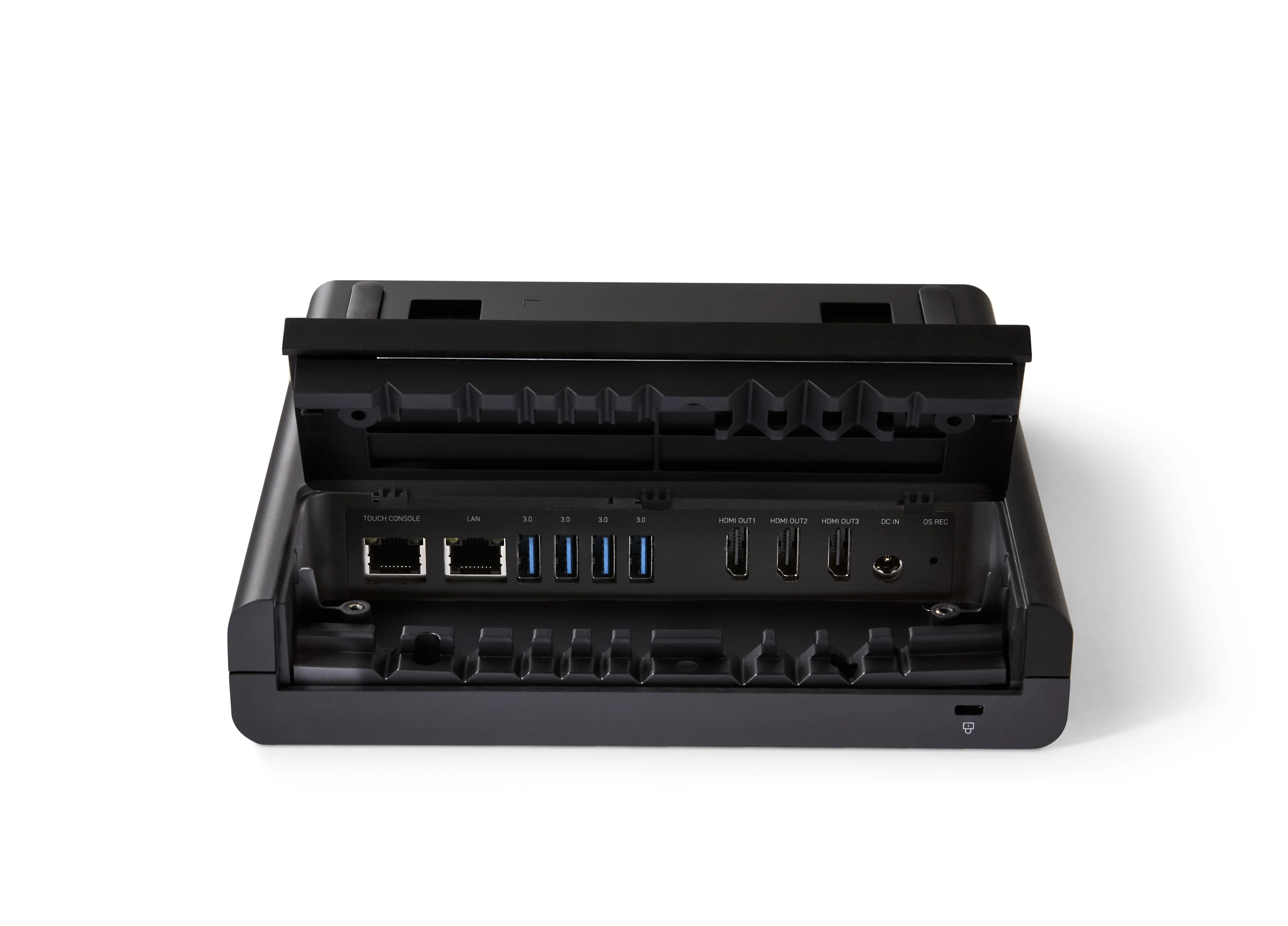

| Interfaces | 1 × RJ45 (LAN); 1 × RJ45 (touch panel); 3 × HDMI; 4 × USB-A 3.0; 1 × DC in; 1 × Kensington lock |
| Power | 120 W max.; FSP120-ABBN3 |
| Weight | 2.4 lb (1.1 kg) |
| MXA902 Ceiling Array Microphone & Loudspeaker | |
| Coverage Area | Single-zone 20 × 20 ft (6.1 × 6.1 m) per unit; PoE+ powered |
| Audio DSP | AEC; noise reduction; automatic mixing; AGC; compressor; 4-band EQ |
| Speaker | 86 dB SPL pink noise @ 1 m; 120 Hz–20 kHz |
| Dimensions | Ø 23.38″ (593.8 mm); height 2.2″ (56 mm) |
| Weight | 12.7 lb (5.8 kg) |
| IntelliMix Touch Panel | |
| Display | 11″ 1920 × 1080 @ 60 Hz capacitive touch |
| Frequency Refresh Rate | 60 Hz |
| Touch System | Capacitive touch |
| Surface Treatment | Anti-fingerprint, anti-glare |
| Motion Sensor | PIR sensor for automatic wake-up |
| Interfaces | 1 × RJ45; 1 × USB-C; 1 × USB-A 2.0; 1 × 3.5 mm audio out |
| Power | 52 V DC via DisplayLink over Cat6; 13 W max |
| Weight | 2.8 lb (1.3 kg) |
| 4-Port PoE+ Network Switch | |
| Model | S1600V2-6P-HPWR |
| Switching Capacity | 12 Gbps |
| Forwarding Capacity | 8.93 Mpps |
| Ports | 4 × GE (PoE+); 1 × GE; 1 × SFP |
| Power Consumption | 86 W max. (PoE 73 W) |
| Huddly Crew USB Adapter | |
| Power Requirements | 5 V 3 A via USB-C or included AC/DC 5 V 4 A adapter |
| Connectivity | 1 × RJ45 (to switch); 1 × USB-C (to compute); 1 × power |
| Dimensions | 3.2 × 3.2 × 1.1 in (82 × 82 × 27 mm) |
| Weight | 0.4 lb (0.2 kg) |
The Shure IMXRK80 IntelliMix Room Kit is certified for Microsoft Teams Rooms and a turnkey choice for multi-camera, AI-enhanced meetings in large spaces. With premium audio, intelligent video and seamless zero-touch provisioning, it delivers exceptional collaboration and enterprise-grade security on day one.
