Lightware MMX8x8-HDMI-4K-A 8x8 HDMI Matrix Switcher with Event Manager
The Lightware MMX8x8-HDMI-4K-A is a professional 8x8 HDMI matrix switcher designed for high-performance AV environments, offering full 4K / UHD video support, advanced audio embedding and de-embedding, and flexible control options. Built with rental and staging applications in mind, it provides seamless switching, Event Manager automation, and rock-solid reliability for mission-critical installations.
Key Features
- 8x8 HDMI Matrix: Eight HDMI inputs and eight HDMI outputs for flexible signal routing.
- 4K / UHD Video: Supports 30Hz RGB 4:4:4 and 60Hz YCbCr 4:2:0, with 3D and HDCP compliance.

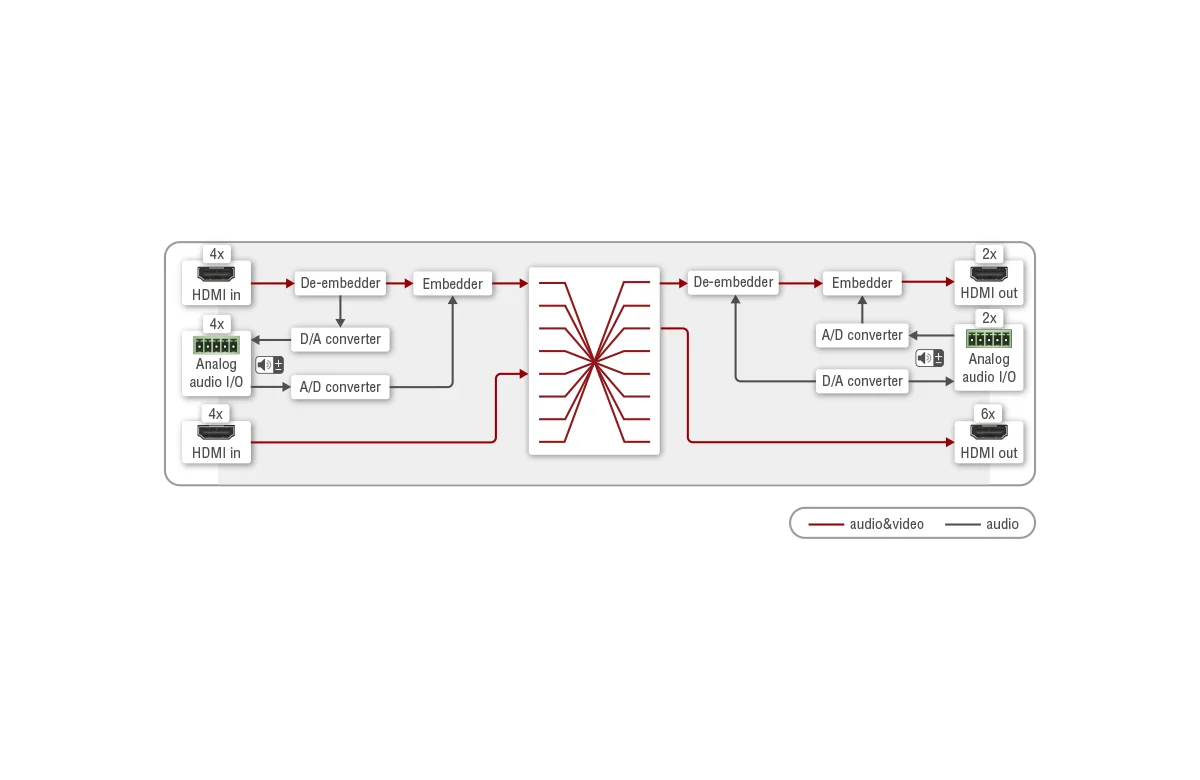

- Audio Embedding/De-Embedding: Four balanced Phoenix audio inputs and two balanced Phoenix audio outputs.
- Advanced EDID Management: Factory, custom, or transparent EDID modes for reliable resolution handling.
- Flexible Control: RS-232, Ethernet, and USB control, plus serial and IR command injection.
- Built-in Event Manager: Enables automation and control via RS-232 and IR ports.

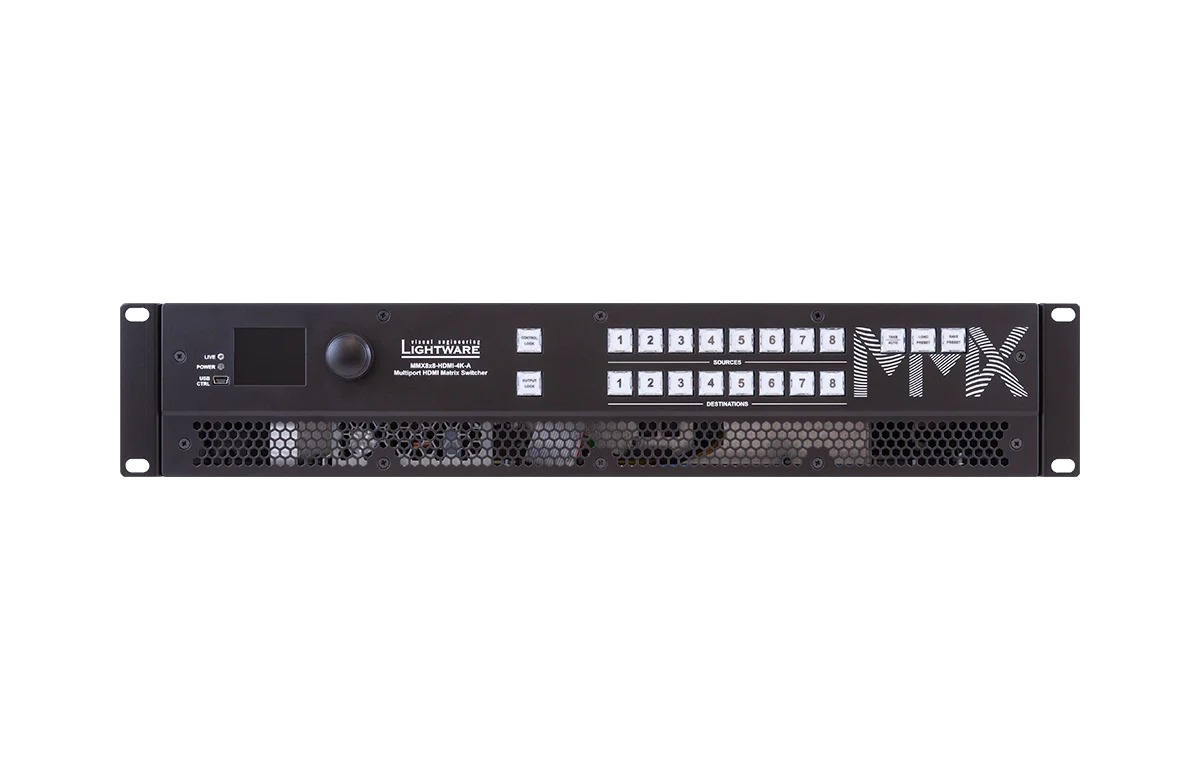

- User-Friendly Interface: Front panel with LCD display, jog dial, and direct control buttons.
Specifications
| Video Inputs | 8 × HDMI |
| Video Outputs | 8 × HDMI |
| Video Formats | 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D, HDCP compliant |
| Audio Inputs | 4 × balanced, 5-pole Phoenix (analogue embedding) |
| Audio Outputs | 2 × balanced, 5-pole Phoenix (analogue de-embedding) |

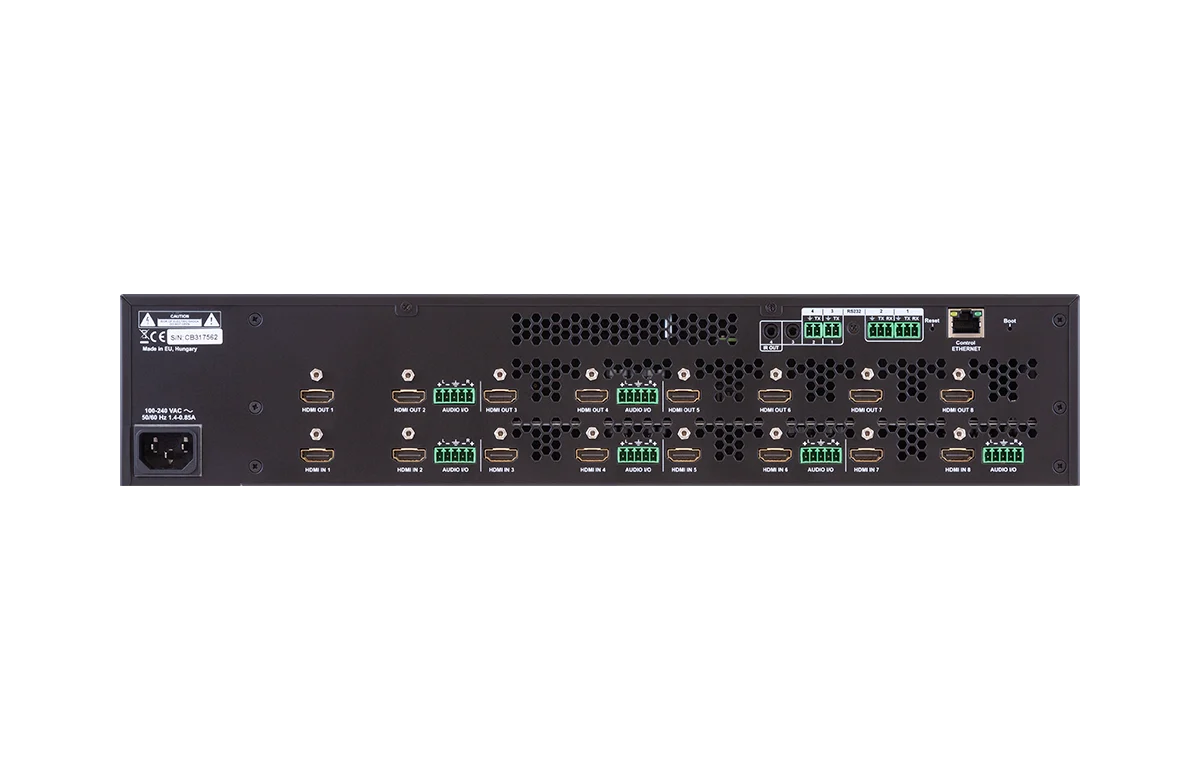

| Control Interfaces | 1 × Ethernet (RJ45) 2 × RS-232 2 × Serial/IR 2 × IR 1 × USB |
| Event Manager | Built-in automation via RS-232 and IR |
| Front Panel | Control buttons, LCD display, jog dial |
Original: $7,311.14
-70%$7,311.14
$2,193.34Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Lightware MMX8x8-HDMI-4K-A is a professional 8x8 HDMI matrix switcher designed for high-performance AV environments, offering full 4K / UHD video support, advanced audio embedding and de-embedding, and flexible control options. Built with rental and staging applications in mind, it provides seamless switching, Event Manager automation, and rock-solid reliability for mission-critical installations.
Key Features
- 8x8 HDMI Matrix: Eight HDMI inputs and eight HDMI outputs for flexible signal routing.
- 4K / UHD Video: Supports 30Hz RGB 4:4:4 and 60Hz YCbCr 4:2:0, with 3D and HDCP compliance.
- Audio Embedding/De-Embedding: Four balanced Phoenix audio inputs and two balanced Phoenix audio outputs.
- Advanced EDID Management: Factory, custom, or transparent EDID modes for reliable resolution handling.
- Flexible Control: RS-232, Ethernet, and USB control, plus serial and IR command injection.
- Built-in Event Manager: Enables automation and control via RS-232 and IR ports.
- User-Friendly Interface: Front panel with LCD display, jog dial, and direct control buttons.
Specifications
| Video Inputs | 8 × HDMI |
| Video Outputs | 8 × HDMI |
| Video Formats | 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D, HDCP compliant |
| Audio Inputs | 4 × balanced, 5-pole Phoenix (analogue embedding) |
| Audio Outputs | 2 × balanced, 5-pole Phoenix (analogue de-embedding) |
| Control Interfaces | 1 × Ethernet (RJ45) 2 × RS-232 2 × Serial/IR 2 × IR 1 × USB |
| Event Manager | Built-in automation via RS-232 and IR |
| Front Panel | Control buttons, LCD display, jog dial |
