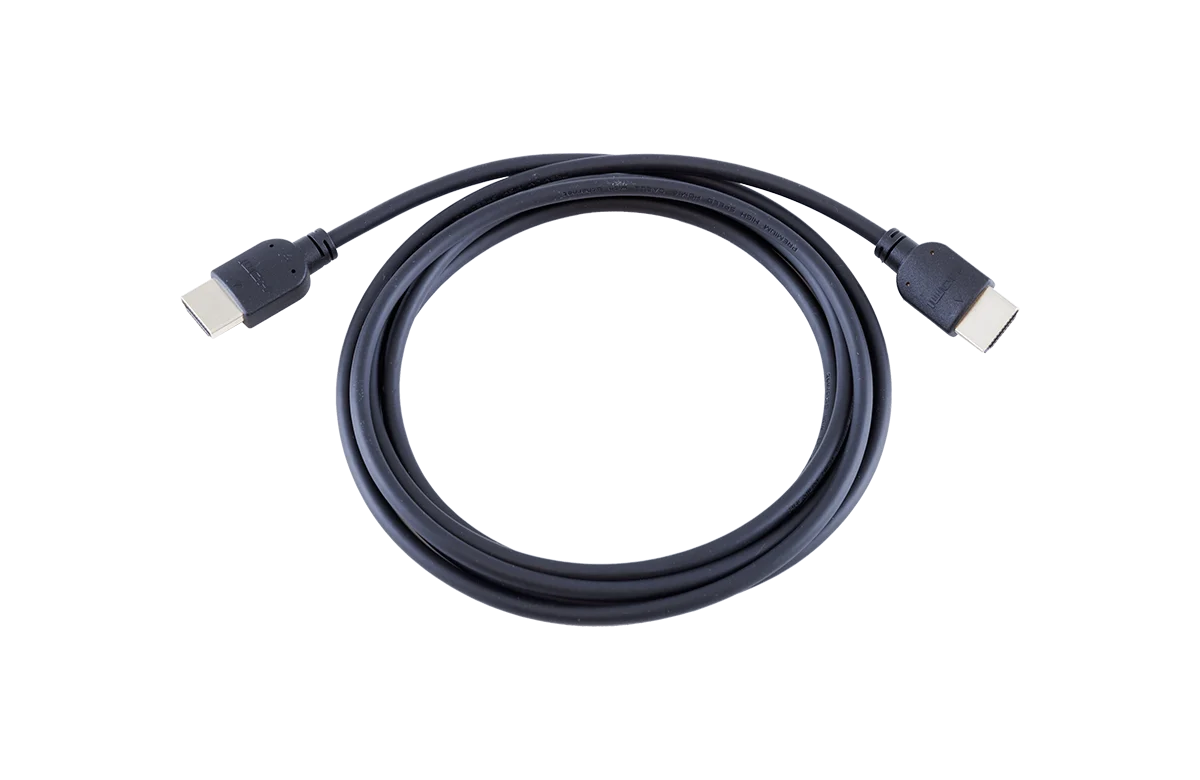

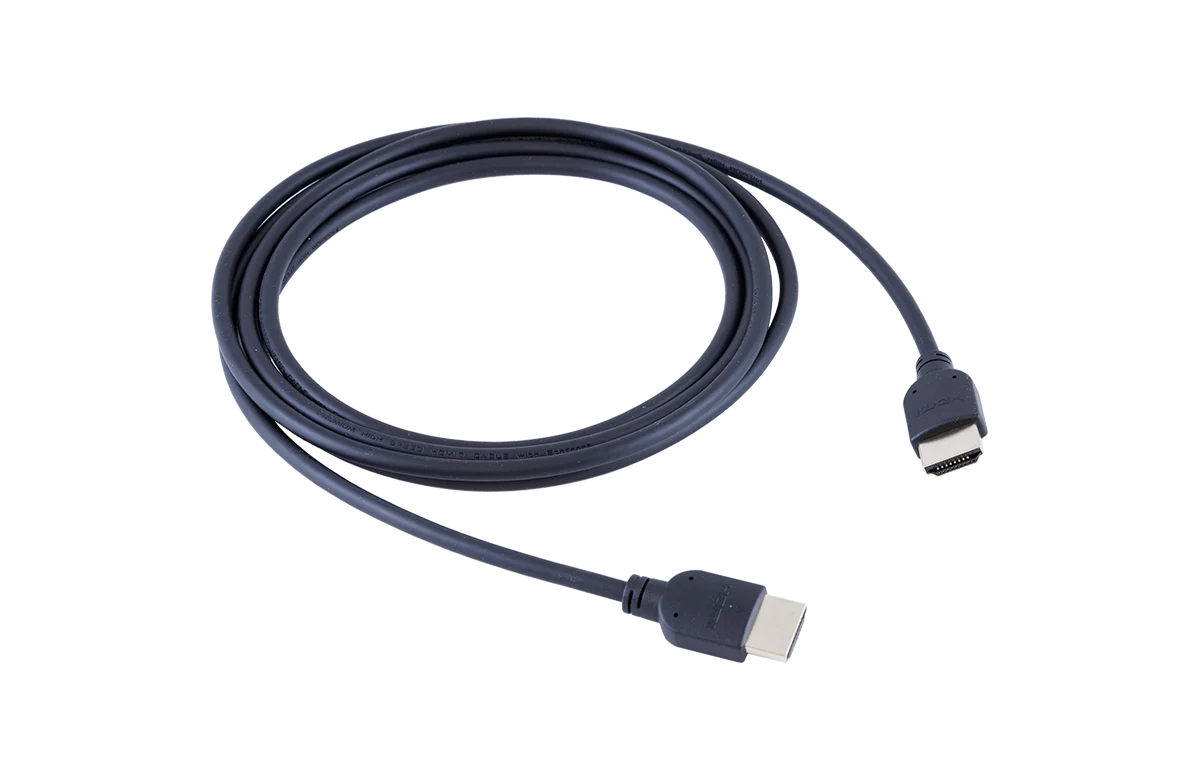

Lightware CAB-HDMI20-PHS0200F 2m HDMI Cable 2.0b Flexy Cable
The Lightware CAB-HDMI20-PHS200F is a premium 2m High-Speed HDMI 2.0b flexy cable. Designed for professional AV installations, it supports 4K60 RGB 4:4:4 video, HDR10, Dolby Vision, HLG, and high-quality multi-channel audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. The cable also carries Consumer Electronics Control (CEC), Audio Return Channel (ARC), and HDMI Ethernet Channel (HEC), while its robust shield design ensures EMI protection and durability. Thin and flexible, it is ideal for installations where space and cable routing are critical.
Key Features
- High Bandwidth: Supports up to 18 Gbps for full HDMI 2.0b video and audio.
- HDR & Advanced Video: Enables HDR10, Dolby Vision, and HLG video transmission.
- 4K60 4:4:4 Support: Delivers full UHD video up to 4096×2160 @ 60 Hz.
- Multi-Channel Audio: Supports Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos.
- Control Features: HDMI CEC, ARC, and HEC for seamless integration.
- Durable Shielding: Extra EMI protection for stable signal transmission.
- Thin & Flexible: Easy installation in tight spaces, bend radius 18 mm.
- Gold-Plated Connectors: Ensures reliable contact and minimal signal loss.
- Wide Compatibility: Works with all HDMI 2.0b devices and resolutions.
- RoHS & REACH Compliant: Environmentally friendly and safe for professional use.
Specifications
| HDMI Standard | 2.0b (18 Gbps) |
| Video Resolution | Up to 4096×2160 @ 60 Hz RGB 4:4:4 |
| Audio Support | Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos |
| Control Signal | HDCP 2.3, EDID, CEC, DDC, HEC, ARC, DisplayID |
| Connector | HDMI Type A Plug, Gold-Plated |
| Colour | Black |
| Outer Diameter | 4.5 mm |
| Jacket Material | Flexible TPE |
| Conductor Material | Copper, 34 AWG |
| Bending Radius | 18 mm |
| Operating Temperature | 0–50 °C |
| Humidity | 0–80% RH |
| Pulling Force | 6 kg |
| Mating Durability | 10,000 cycles |
| Compliance | RoHS, REACH (EC 1907/2006), TPE FT-2 Flammability |
