Crestron UCA-SMK-UC2

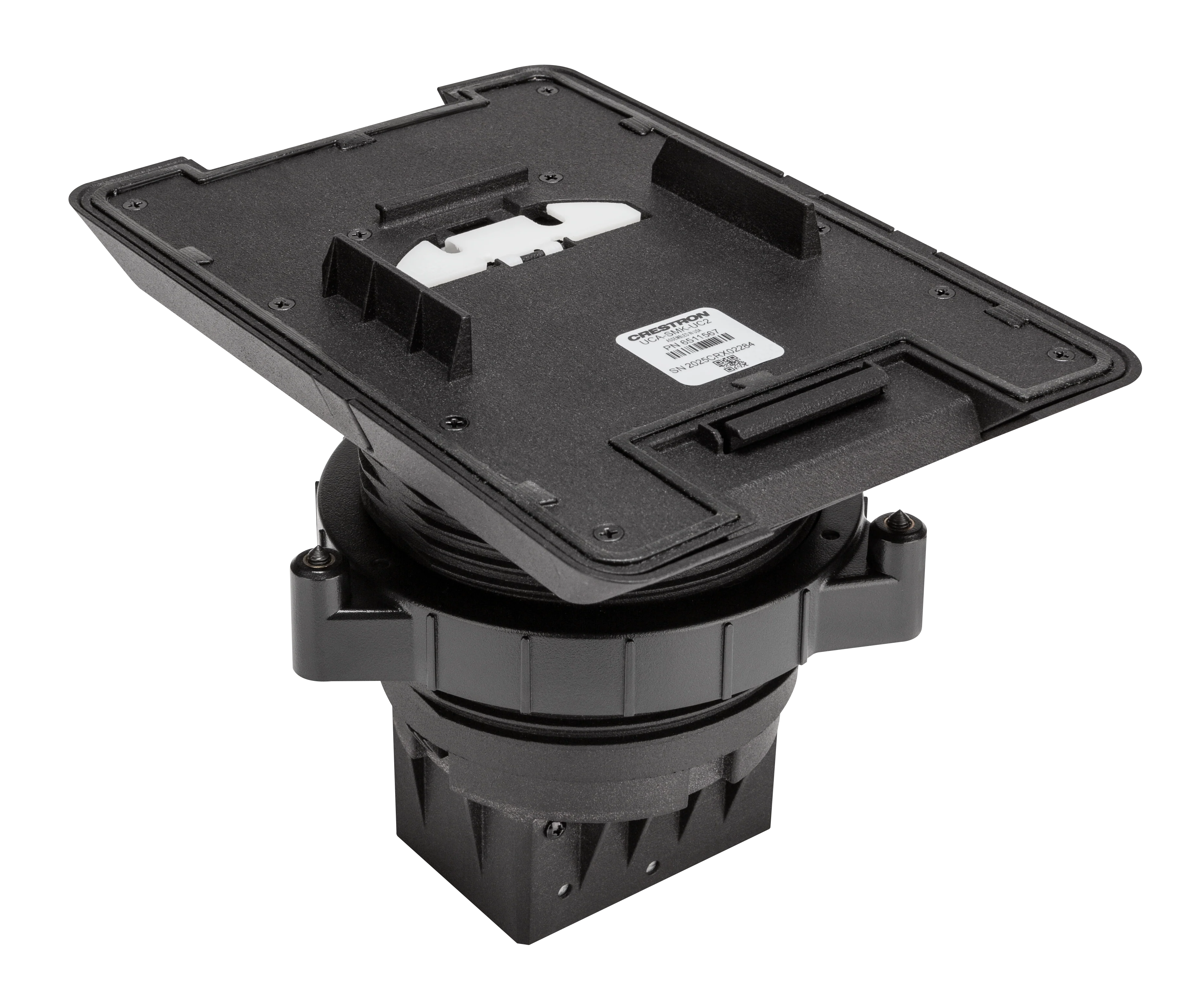

The Crestron UCA-SMK-UC2 is a low-profile swivel mount accessory designed for use with the Crestron Flex Tabletop Small Room Conference Systems (UC‑MM30‑T-I, UC-MM30-Z-I and UC‑MM30‑R-I series). This mount provides a secure, permanent installation solution while allowing the device to rotate up to 170° for optimal positioning during use.
Key Features
- Swivel Mount Design: Allows the device to rotate up to 170°, providing flexibility for positioning and improving accessibility during meetings.
- Secure Installation: Permanently mounts to flat, level surfaces with a thickness ranging from 1/2 in. (13 mm) to 1-1/4 in. (32 mm), ensuring stability and durability.
- Low-Profile Appearance: The mount is designed to route wiring through its center, passing beneath the mounting surface for a clean, hidden installation.
- Compatibility: Compatible with the UC‑MM30‑T-I, UC-MM30-Z-I and UC‑MM30‑R-I series Crestron Flex tabletop systems.
Specifications
| Swivel Range | 170° total (-85° to +85°) |
| Material | Black polycarbonate-ABS |
| Mounting Requirements | Tabletop mount, fastened by a locking nut Surface thickness: 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum 4 in. (102 mm) diameter mounting hole cutout (template included) |
| Dimensions (Height) |
Without the UC-2 mounted: Total: 6.04 in. (153 mm) Above the table: 1.20 in. (30 mm) Below the table: 4.07 in. (103 mm) With the UC-2 mounted: Total: 8.16 in. (207 mm) Above the table: 3.34 in. (85 mm) Below the table: 4.07 in. (103 mm) |
| Dimensions (Width) |
Without the UC-2 mounted: Above the table: 5.39 in. (137 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC-2 mounted: Above the table: 7.17 in. (182 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
| Dimensions (Depth) |
Without the UC-2 mounted: Above the table: 7.91 in. (201 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC-2 mounted: Above the table: 9.61 in. (244 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
$196.86
Crestron UCA-SMK-UC2—
$196.86
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Crestron UCA-SMK-UC2 is a low-profile swivel mount accessory designed for use with the Crestron Flex Tabletop Small Room Conference Systems (UC‑MM30‑T-I, UC-MM30-Z-I and UC‑MM30‑R-I series). This mount provides a secure, permanent installation solution while allowing the device to rotate up to 170° for optimal positioning during use.
Key Features
- Swivel Mount Design: Allows the device to rotate up to 170°, providing flexibility for positioning and improving accessibility during meetings.
- Secure Installation: Permanently mounts to flat, level surfaces with a thickness ranging from 1/2 in. (13 mm) to 1-1/4 in. (32 mm), ensuring stability and durability.
- Low-Profile Appearance: The mount is designed to route wiring through its center, passing beneath the mounting surface for a clean, hidden installation.
- Compatibility: Compatible with the UC‑MM30‑T-I, UC-MM30-Z-I and UC‑MM30‑R-I series Crestron Flex tabletop systems.
Specifications
| Swivel Range | 170° total (-85° to +85°) |
| Material | Black polycarbonate-ABS |
| Mounting Requirements | Tabletop mount, fastened by a locking nut Surface thickness: 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum 4 in. (102 mm) diameter mounting hole cutout (template included) |
| Dimensions (Height) |
Without the UC-2 mounted: Total: 6.04 in. (153 mm) Above the table: 1.20 in. (30 mm) Below the table: 4.07 in. (103 mm) With the UC-2 mounted: Total: 8.16 in. (207 mm) Above the table: 3.34 in. (85 mm) Below the table: 4.07 in. (103 mm) |
| Dimensions (Width) |
Without the UC-2 mounted: Above the table: 5.39 in. (137 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC-2 mounted: Above the table: 7.17 in. (182 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
| Dimensions (Depth) |
Without the UC-2 mounted: Above the table: 7.91 in. (201 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC-2 mounted: Above the table: 9.61 in. (244 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
