Crestron TST-1080-DSW

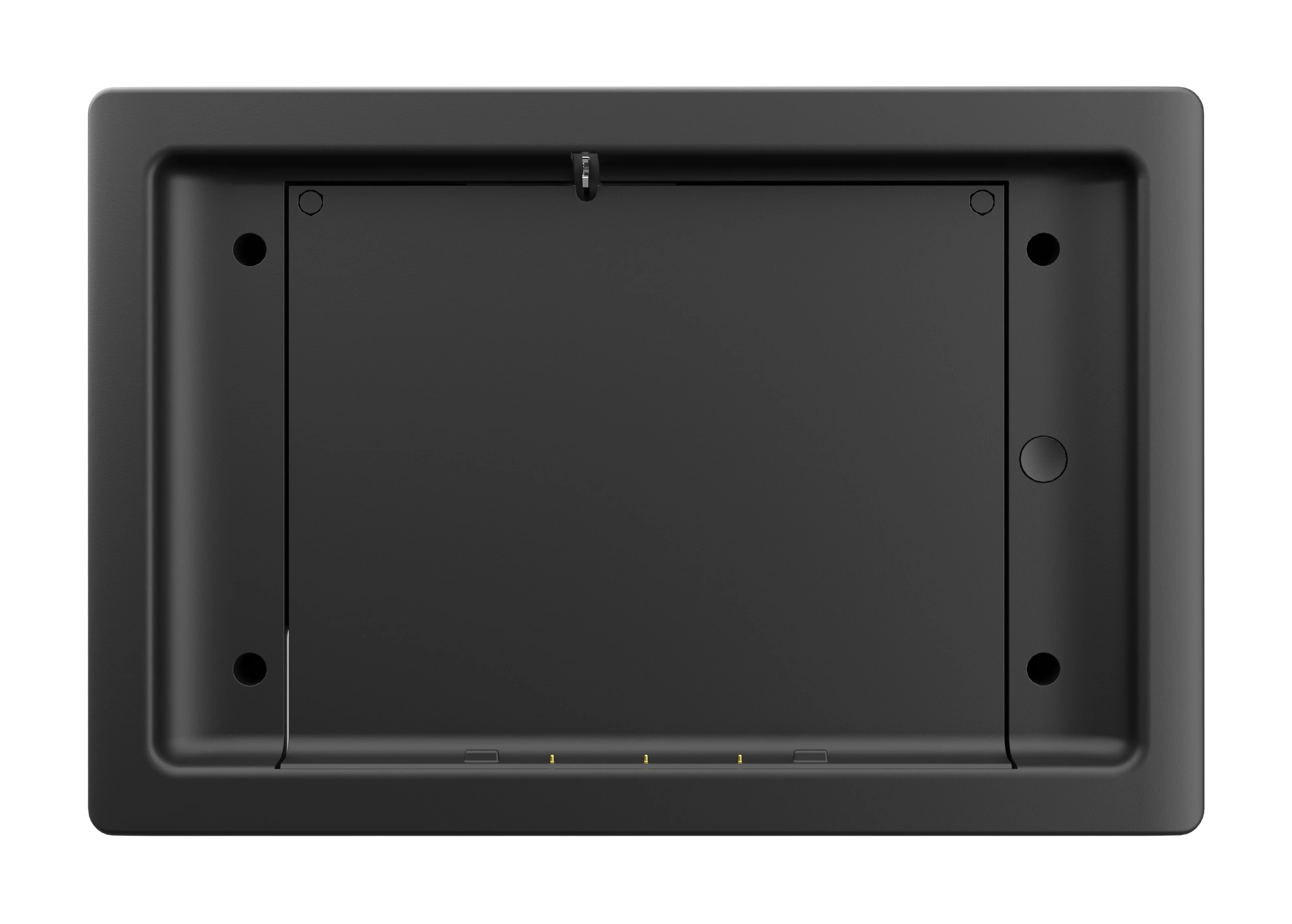

The Crestron TST-1080-DSW Wall Dock is an optional docking solution designed to securely hold and charge the TST-1080 wireless touch screen. By placing the TST-1080 into the wall dock, it functions as a stationary touch screen while its internal battery recharges, making it a convenient addition to both residential and commercial installations.

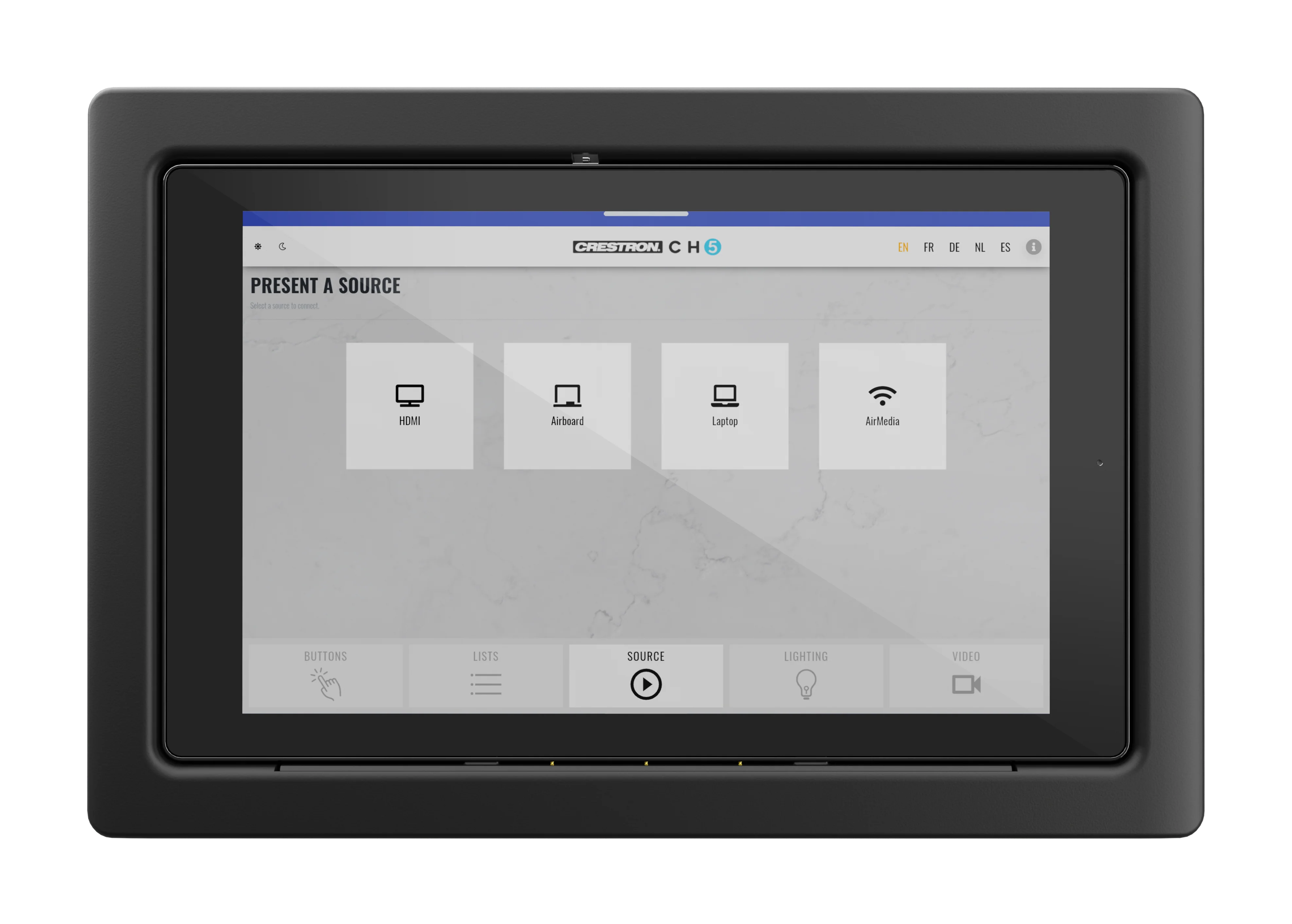

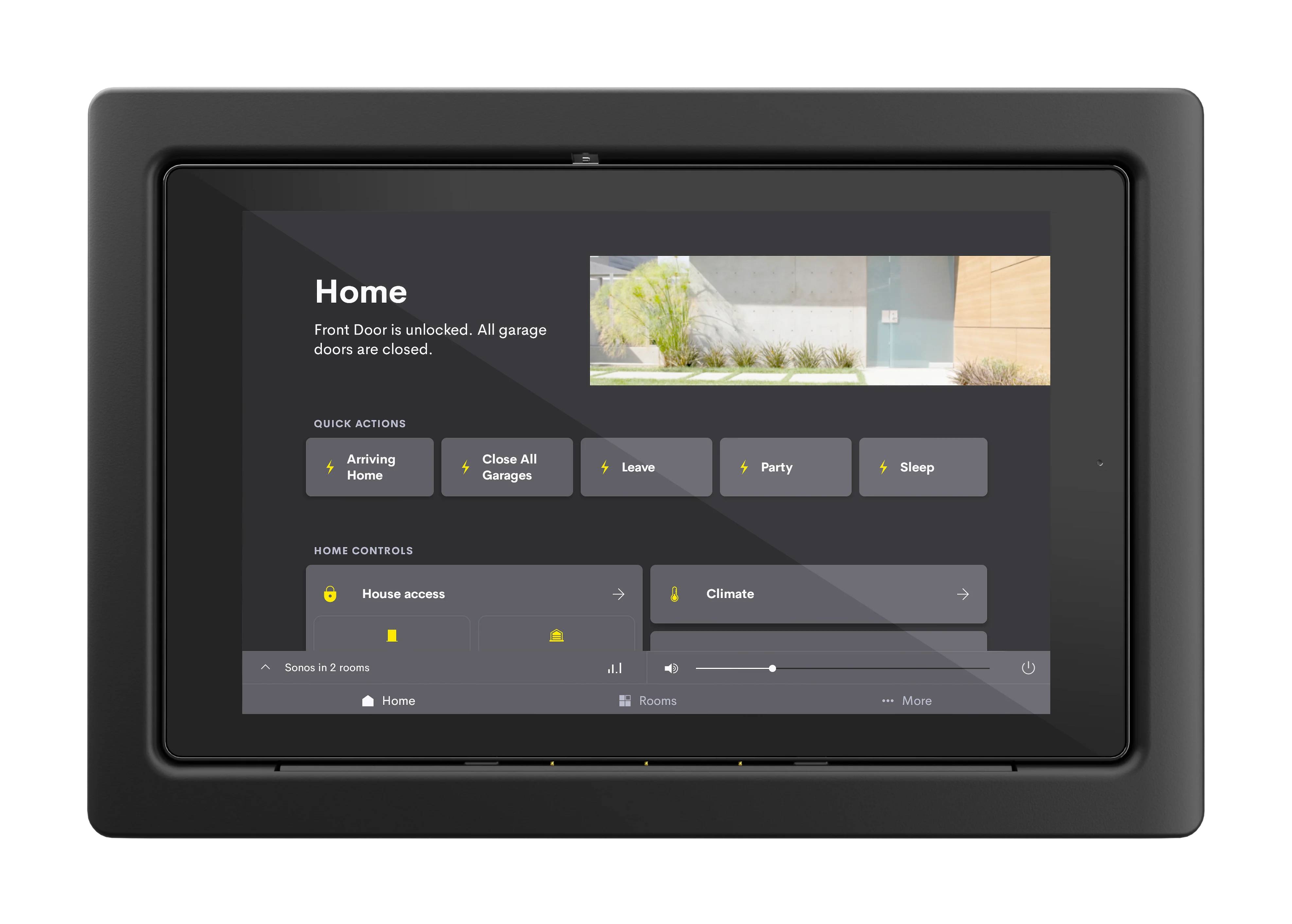

When docked, the TST-1080 sits nearly flush with the bezel, providing a sleek and professional appearance while deterring unauthorised removal. The mechanism gently tilts the touch screen outward at the press of a button or after entering a passcode, allowing for easy undocking and wireless use. In case of a power outage, a hardware key is included for manual release.
Key Features
- Secure Docking: Keeps the TST-1080 securely mounted and charges the internal battery simultaneously.
- Elegant Design: Ensures the touch screen sits flush with the wall dock bezel for a clean, professional look.
- Easy Release: Allows undocking with a passcode or button press, with manual release via a hardware key in emergencies.
- Flush Mount Installation: Compatible with flat, vertical wall structures for preconstruction and postconstruction applications.
Specifications
| Cresnet Power Requirements | 30 W (1.25 A @ 24VDC) with touch screen docked |
| Controls | Open Button: Releases the docking mechanism to undock the TST-1080. |
| Environmental |
Temperature: 41° to 112°F (5° to 45°C) Humidity: 10% to 90% RH (noncondensing) |
| Enclosure |
Chassis: Metal, flush-mountable in vertical wall structures Faceplate: Plastic, black |
| Dimensions |
Height: 8.01 in. (204 mm) Width: 11.86 in. (301 mm) Depth: 4.37 in. (111 mm) undocked; 3.16 in. (80 mm) docked |
| Weight | 4.7 lb (2.1 kg) |
Installation of the TST-1080-DSW requires additional hardware (sold separately):
- The TST 902-DSW-BBI back box for framed and masonry construction.
- The TST 902-DSW-PMK, TST 902-DSW-WMKM, and TST 902-DSW-WMKT mounting kits for preconstruction and postconstruction applications without a back box.
The Crestron TST-1080-DSW is the ideal wall dock for securely mounting and charging the TST-1080 wireless touch screen while allowing flexibility for wireless usage when needed. Its robust design and flush mount installation ensure it integrates perfectly into any space.
